Contribute

Overall guidance on contributing to a PyAnsys repository appears in Contribute in the PyAnsys Developer’s Guide. Ensure that you are thoroughly familiar with this guide, paying particular attention to Guidelines and Best Practices, before attempting to contribute to PyAEDT.

The following contribution information is specific to PyAEDT.

Clone the repository

To clone and install the latest version of PyAEDT in development mode, run:

git clone https://github.com/ansys/pyaedt
cd pyaedt
python -m pip install --upgrade pip
pip install -e .

Post issues

Use the PyAEDT Issues page to submit questions, report bugs, and request new features.

To reach the product support team, email pyansys.core@ansys.com.

View PyAEDT documentation

Documentation for the latest stable release of PyAEDT is hosted at PyAEDT Documentation.

In the upper right corner of the documentation’s title bar, there is an option for switching from viewing the documentation for the latest stable release to viewing the documentation for the development version or previously released versions.

Code style

PyAEDT complies with the PyAnsys code style. pre-commit is applied within the CI/CD to ensure compliance. However, for local development, you might want to use prek which is a drop-in alternative to pre-commit that is faster and more efficient in disk space usage. The prek Python package can be installed and run as follows:

pip install prek
prek run --all-files

You can also install this as a prek hook with:

prek install

This way, it’s not possible for you to push code that fails the style checks. For example:

$ prek install
$ git commit -am "Add my cool feature."
black....................................................................Passed
isort (python)...........................................................Passed
flake8...................................................................Passed
codespell................................................................Passed
debug statements (python)................................................Passed
trim trailing whitespace.................................................Passed
Validate GitHub Workflows................................................Passed
blacken-docs.............................................................Passed

Naming conventions

Consistency of names helps improve readability and ease of use. Starting with release 0.8 a concerted effort has been made to improve consistency of naming and adherence to :ref:`PEP-8<https://peps.python.org/pep-0008/>`_.

For example, methods used to create or access entities in AEDT require that a name be passed to the method or function as an argument. It is tempting to include context as part of that variable name. For example, while it is tempting to use setupname as an argument to :meth:`Hfss.create_setup`_, the context “setup” is explicitly defined by the method name. The variable name provides a more compact description of the variable in this context.

In previous PyAEDT versions, you can also find both setup_name and setupname used for various methods or classes. Improving naming consistency improves maintainability and readability.

The following table illustrates the recommended conventions:

Keywords and object names

Old name	New name	Example
setupname, setup_name, sweepname	name	Hfss.create_setup(), Hfss.create_linear_step_sweep()
usethickness	thickness	Hfss.assign_finite_conductivity()
entities	assignment	Maxwell.assign_current_density()
entity_list	assignment	Maxwell.assign_symmetry()

Take care to use descriptive names for variables and classes that adhere to PEP-8 and are consistent with conventions already used in PyAEDT.

Log errors

PyAEDT has an internal logging tool named Messenger and a log file that is automatically generated in the project folder.

The following examples demonstrate how Messenger is used to write both to the internal AEDT message windows and the log file:

self.logger.error("This is an error message.")
self.logger.warning("This is a warning message.")
self.logger.info("This is an info message.")

These examples demonstrate how to write messages only to the log file:

self.logger.error("This is an error message.")
self.logger.warning("This is a warning message.")
self.logger.info("This is an info message.")

Handle exceptions

PyAEDT uses a specific decorator, @pyaedt_function_handler, to handle exceptions caused by methods and by the AEDT API. This exception handler decorator makes PyAEDT fault tolerant to errors that can occur in any method.

For example:

@pyaedt_function_handler()
def my_method(self, var):
    pass

Every method can return a value of True when successful or False when failed. When a failure occurs, the error handler returns information about the error in both the console and log file.

Here is an example of an error:

----------------------------------------------------------------------------------
PyAEDT error on method create_box:  General or AEDT error. Check again
the arguments provided:
    position = [0, 0, 0]
    dimensions_list = [0, 10, 10]
    name = None
    material = None
----------------------------------------------------------------------------------

(-2147352567, 'Exception occurred.', (0, None, None, None, 0, -2147024381), None)
  File "C:\GIT\repos\AnsysAutomation\PyAEDT\Primitives.py", line 1930, in create_box
    o.name = self.oeditor.createbox(vArg1, vArg2)

************************************************************
Method Docstring:

Create a box.

Parameters
----------
...

Hard-coded values

Do not write hard-coded values to the registry. Instead, use the Configuration service.

Maximum line length

Best practice is to keep the length at or below 120 characters for code, and comments. Lines longer than this might not display properly on some terminals and tools or might be difficult to follow.

Extension development guide

This section describes the steps to create and integrate a PyAEDT extension at the project level. Extensions are modular components that add functionality to the AEDT environment via the PyAEDT API. They follow a structured convention to ensure consistency, maintainability, and documentation.

Note

To create an extension at an application level, for example Hfss, the process is similar. The main difference is that the extension file and documentation should be placed in the appropriate directory, for example src/ansys/aedt/core/extensions/hfss and doc/source/User_guide/pyaedt_extensions_doc/hfss respectively.

Step 1: Create the extension Python file

Navigate to the directory src/ansys/aedt/core/extension/project and create a new Python file for your extension. The file name should be descriptive and follow the format extension_name.py, where extension_name is a lowercase, hyphen-separated name that describes the extension’s functionality. The extension file should follow the official template and contain at least two classes:

1. A class that inherits from ExtensionCommon and implements the extension’s logic. By inheriting from ExtensionCommon, the extension’s theme and style are automatically set and can leverage standard extension methods like the theme button handling, access to the AEDT application, and more. The custom content of the extension should be defined in the add_extension_content method and should be called in the __init__ method of the class. This method is where you can define the user interface (UI) elements, such as buttons, text fields, and other widgets to display. Below is an example of how to create a basic extension class:

from ansys.aedt.core.extensions import ExtensionCommon, ExtensionData


class MyExtension(ExtensionCommon):
    def __init__(self, *args, **kwargs):
        super().__init__(*args, **kwargs)
        self.add_extension_content()

    def add_extension_content(self):
        # Define your UI elements here
        pass

2. A data class that inherits from ExtensionCommonData. This class should define the data that is provided and computed through the UI. Below is an example of how to create a data class for your extension:

from dataclasses import dataclass
from dataclasses import field


@dataclass
class MyExtensionData(ExtensionCommonData):
    setup: str = ""
    assignments: list = field(default_factory=lambda: [])

Splitting the extension logic into two classes allows for better separation of concerns and makes it easier to test and maintain the code. The first class handles the UI and user interactions, while the second class manages the data and logic behind the extension. On top of those classes, the file should also define a main function that is used to run the core logic behind the extension. This function should ingest an instance of the data class defined in the second step. Below is an example of how to define the main function:

def main(extension_data: MyExtensionData):
    if not data.setup:
        raise AEDTRuntimeError("No setup provided to the extension.")

    # Core logic of the extension goes here

Step 2: Add unit tests

Create a test file in the tests/unit/extensions directory with the same name as your extension file, but with a test_ prefix. For example, if your extension file is named my_extension.py, the test file should be test_my_extension.py. This file should mainly contain unit tests for your extension’s UI components. For example checking that clicking a button triggers the expected action or that the UI elements are correctly initialized. If your extension requires AEDT to run, you should patch every method that requires AEDT to run, so that the test can be run without an active AEDT instance. This is important because unit tests should be fast and not depend on an external application like AEDT. You can use the unittest.mock library to patch methods and classes that require AEDT. A good example of such a test file is the test_template_extension.py file where the instantiation of the Desktop class is patched to avoid the need for an active AEDT instance. Below is an example of how to create a unit test for your extension:

from unittest.mock import patch
from ansys.aedt.core.extensions.project.my_extension import MyExtension, MyExtensionData


@patch("ansys.aedt.core.extensions.misc.Desktop")
def test_my_extension(mock_desktop):
    extension = MyExtension()

    assert "My extension title" == extension.root.title()
    assert "light" == extension.root.theme
    assert "No active project" == extension.active_project_name

    extension.root.destroy()

Step 3: Add system tests

Like the previous step, create a test file in the tests/system/extensions directory with the same name as your extension file, but with a test_ prefix. However, contrary to unit tests, system tests are meant to be run with an active AEDT instance. These tests should validate the overall functionality of the extension, ensuring that it behaves as expected when integrated into the AEDT environment.

from ansys.aedt.core.extensions.project.my_extension import MyExtension, MyExtensionData
from ansys.aedt.core import Hfss


def test_my_extension_system(add_app):

    # Create some data in AEDT to test the extension
    aedt_app = add_app(
        application=Hfss, project_name="my_project", design_name="my_design"
    )
    aedt_app["p1"] = "100mm"
    aedt_app["p2"] = "71mm"
    test_points = [
        ["0mm", "p1", "0mm"],
        ["-p1", "0mm", "0mm"],
        ["-p1/2", "-p1/2", "0mm"],
        ["0mm", "0mm", "0mm"],
    ]
    p = aedt_app.modeler.create_polyline(
        points=test_points,
        segment_type=PolylineSegment("Spline", num_points=4),
        name="spline_4pt",
    )

    # Create the extension and set its data by clicking on the "Generate" button
    extension = MyExtension()
    extension.root.nametowidget("generate").invoke()

    # Check that the extension logic executes correctly
    assert 2 == len(aedt_app.variable_manager.variables)
    assert main(extension.data)
    assert 7 == len(aedt_app.variable_manager.variables)

Run tests in VSCode and PyCharm

This section explains how to run pytest unit and system tests in VSCode (Visual Studio Code) and PyCharm, and how to estimate coverage using the “Run with coverage” feature or pytest-cov.

Prerequisites

• Install pytest and pytest-cov in your environment if you haven’t already:

pip install pytest pytest-cov

• Ensure your IDE is configured to use the Python interpreter where the packages are installed.

VSCode IDE

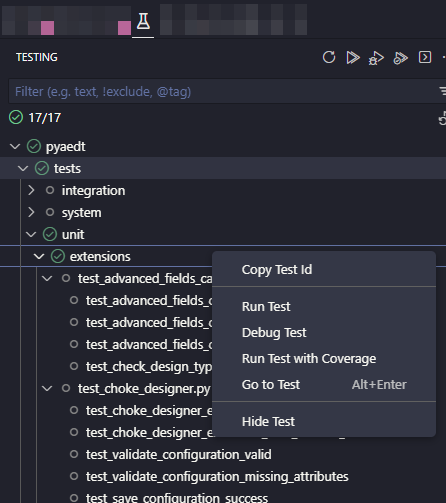

1. Use the Test Explorer (Python extension) to discover and run tests:

• Open the Testing side bar (beaker icon).

• Run or debug individual tests, test files, or test suites from the UI.

2. Run tests and view coverage using the GUI

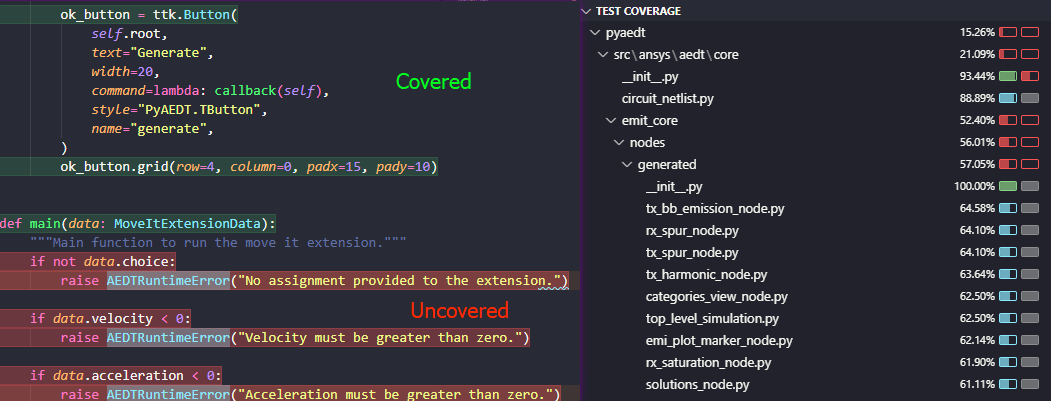

• VSCode: - Click the “Run Test with Coverage” button in the Test Explorer toolbar to run one or more tests with coverage. - After the tests complete, a coverage summary appears in the Test Explorer (coverage % by file), and covered/uncovered lines are highlighted in the editor.

Brief note

You can also run tests with coverage from a terminal in VSCode using pytest-cov: .. code:: bash

pytest tests/unit –cov=src –cov-report=term-missing –cov-report=html

This is an example command to run unit tests with coverage. Adjust the path to your test files as needed.

PyCharm IDE

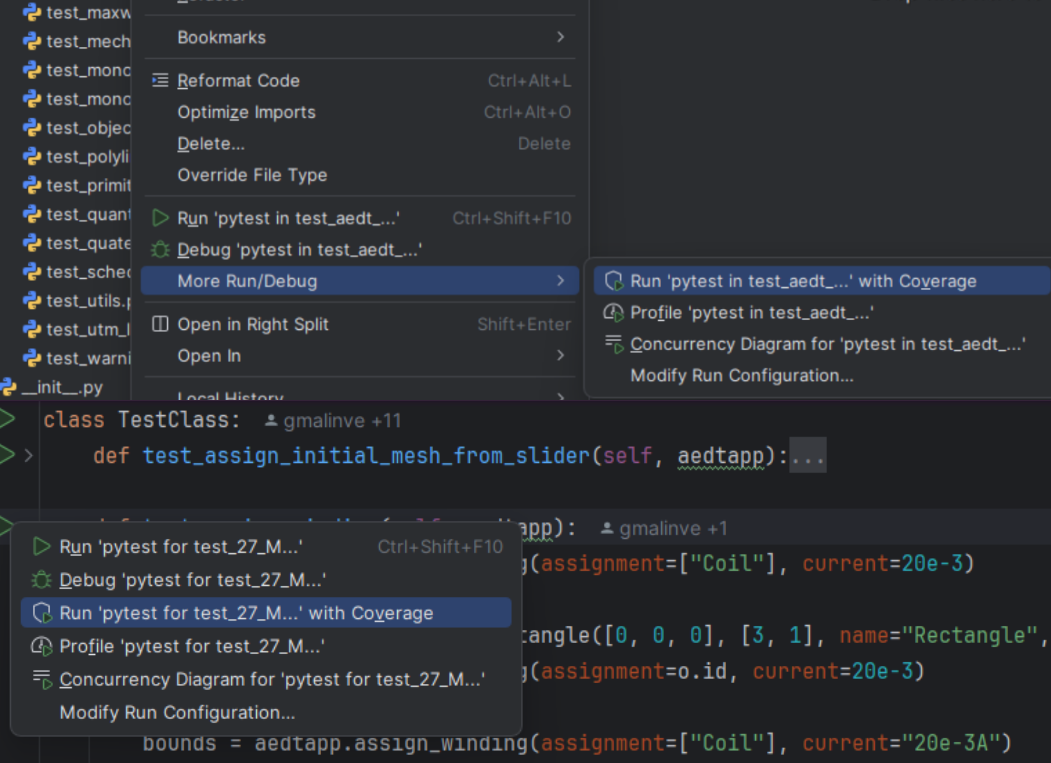

1. Configure pytest as the test runner: - Settings -> Tools -> Python Integrated Tools -> Default test runner -> pytest

2. Run tests from the IDE: - Right-click a test file, folder, or test function and choose Run or Debug. - Use the dedicated test runner UI to run and inspect results.

3. Run with coverage in PyCharm: - Right-click a test file or configuration and choose “Run ‘pytest in’ with Coverage”. - PyCharm shows a coverage summary and highlights covered and uncovered lines in the editor.

4. Run with pytest-cov from a terminal in PyCharm (alternative):

pytest tests/unit --cov=src --cov-report=term-missing --cov-report=html

Interpreting coverage results

• Coverage percentage shows the portion of executed lines compared to total executable lines in the source files.

• Higher coverage is generally better, but 100% coverage does not guarantee bug-free code. At least 85% coverage for all the new code added to the repository is required.

• Use --cov-report=term-missing to see which lines are not covered directly in the terminal.

• Use --cov-report=html and open htmlcov/index.html in a browser for an easy-to-navigate, per-file coverage report.

• Run unit and system tests separately to estimate their individual contributions:

Best practices

• Aim to keep unit tests fast and isolated; use mocks for external systems like AEDT.

• Use the IDE “Run with coverage” feature for quick, visual feedback.

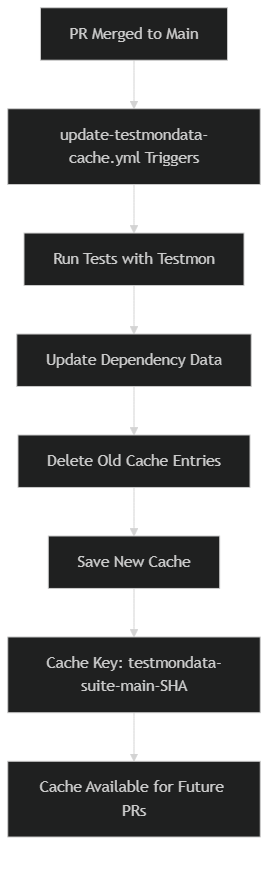

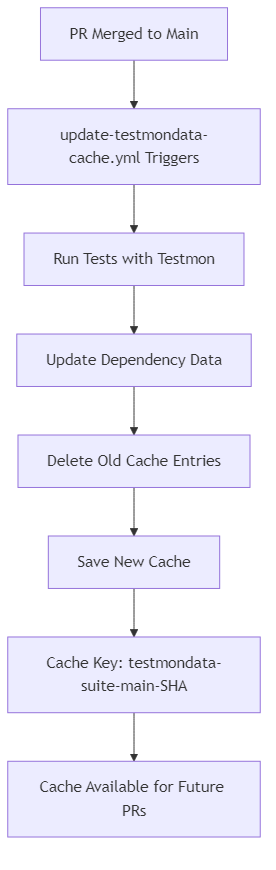

Step 4: Add the extension to the catalog

Add your extension to the catalog by creating a new entry in the toolkits_catalog.toml file located in the src/ansys/aedt/core/extensions/project directory. The entry should follow the format of existing entries, specifying the name, script, icon, and template. For example, to add your extension, you would add an entry like this:

[MyExtension]
name = "My Extension"
script = "my_extension.py"
icon = "images/large/my_extension_icon.png"
template = "run_pyaedt_toolkit_script"

The path to the image is relative to the directory where your extension is located. For example, if the extension is located in the src/ansys/aedt/core/extensions/project directory then, following the previous code block information, the path to the icon should be src/ansys/aedt/core/extensions/project/images/large/my_extension_icon.png.

Step 5: Add the extension to the documentation

To ensure that your extension is documented, you need to add a new card to the doc/source/User_guide/extensions.rst file. This card links to the extension’s documentation page. The documentation page needs to be created in the doc/source/User_guide/pyaedt_extensions_doc/project directory and should contain a brief description of the extension, its functionality, and how to use it. Also, another card should be added to the doc/source/User_guide/pyaedt_extensions_doc/project/index.rst file to link to the extension’s documentation page. This ensures that the extension is discoverable in the documentation from the multiple pages that list all the extensions available in PyAEDT.

Local testing parameters

Two configuration files control test behavior:

• tests/local_config.json: Contains parameters intended for modification during local testing. These settings control test execution behavior such as desktop version, graphical mode, and feature flags. This file does not exist by default and must be created manually in the tests/ directory.

• tests/pyaedt_settings.yaml: Contains default PyAEDT settings applied to all tests. These settings are not intended for local modification.

Creating local_config.json

To customize local test execution, create a local_config.json file in the tests/ directory at the top level of the repository. Below is an example configuration with descriptions of each parameter:

{
    "desktopVersion": "2025.2",
    "NonGraphical": true,
    "NewThread": true,
    "skip_circuits": false,
    "use_grpc": true,
    "close_desktop": true,
    "use_local_example_data": false,
    "local_example_folder": "",
    "skip_modelithics": true
    "use_pyedb_grpc": true
}

Parameter descriptions:

• desktopVersion: AEDT version to use for testing (for example, “2025.2,” “2024.1”).

• NonGraphical: When true, runs AEDT in non-graphical mode (headless).

• NewThread: Opens AEDT in a new thread.

• skip_circuits: When true, skips Circuit-related tests.

• use_grpc: When true, uses gRPC API for communication with AEDT.

• close_desktop: When true, closes AEDT after tests complete.

• use_local_example_data: When true, uses local example data for tests.

• local_example_folder: Path to the local example data folder.

• skip_modelithics: When true, skips Modelithics-related tests.

• use_pyedb_grpc: When true, use PyEDB with gRPC for database access.

Replicating CI/CD environment

The CI/CD pipeline loads pyaedt_settings.yaml via the environment variable:

PYAEDT_LOCAL_SETTINGS_PATH='tests/pyaedt_settings.yaml'

To replicate the CI/CD environment locally, set this environment variable on your machine:

• Windows (PowerShell):

$env:PYAEDT_LOCAL_SETTINGS_PATH='tests/pyaedt_settings.yaml'

• Linux (Bash):

export PYAEDT_LOCAL_SETTINGS_PATH='tests/pyaedt_settings.yaml'

Testmon in CI/CD

This section explains how PyAEDT uses Testmon to optimize test execution in the CI/CD pipeline by only running tests affected by code changes.

What is Testmon?

Testmon is a pytest plugin that monitors which source code files are used by each test and stores this dependency information in a database file (.testmondata). On subsequent test runs, Testmon analyzes which files have changed and selectively runs only the tests that depend on the modified code.

Key benefits:

• Faster CI pipelines: Only tests affected by changes are executed, significantly reducing test runtime.

• Resource efficiency: Reduces computational costs on self-hosted runners and GitHub Actions.

• Immediate feedback: Developers get quicker feedback on their changes.

How it works:

1. Testmon creates a dependency graph mapping each test to the source files it uses.

2. When code changes, Testmon compares the current state against the cached dependency data.

3. Only tests with dependencies on changed files are selected for execution.

4. The dependency database is cached between runs to maintain history.

Requirements and constraints:

For Testmon to work correctly, the following requirements must be met:

• Dependency consistency: The Testmon cache must be built and used with the exact same dependency versions. If the environment changes (for example, package updates, different Python versions), the cache becomes invalid and must be regenerated. The CI/CD pipeline enforces this by using locked dependency files and consistent environments.

• No pytest markers for test selection: Testmon relies on analyzing code dependencies to determine which tests to run. Using pytest markers (for example, -m "solvers") forces Testmon to run with –testmon-noselect argument and leads to all tests being run, negating the benefits of selective testing. Instead, the way to select specific test suites is by providing the path to the test files (for example, pytest tests/solvers).

If you want to learn more details about this implementation, check .github/workflows files inside the repository.

Testmon workflow during pull requests

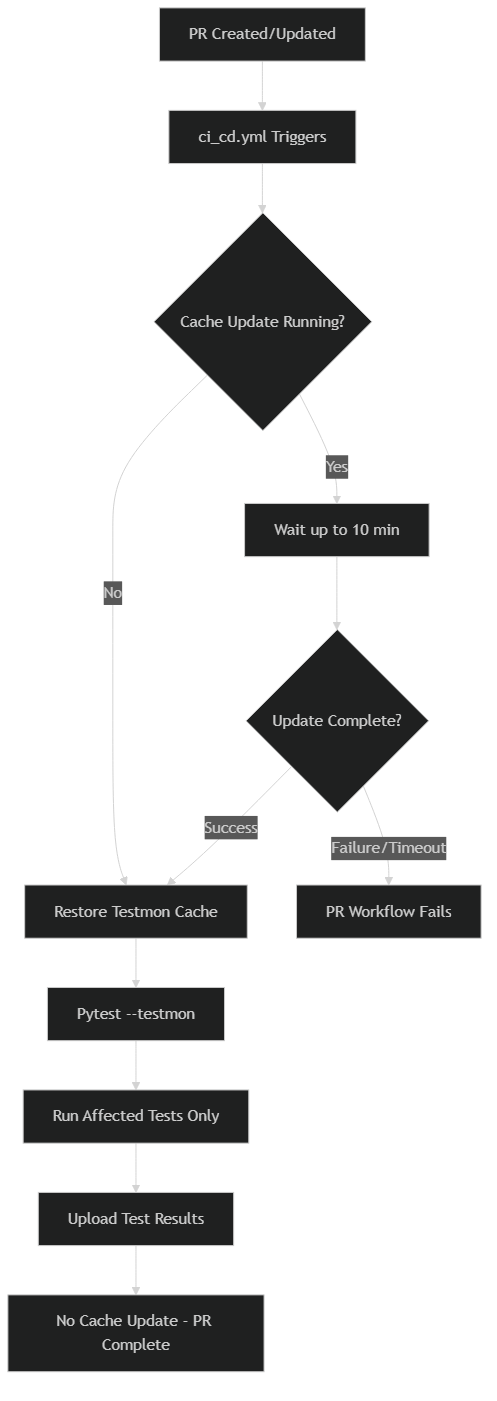

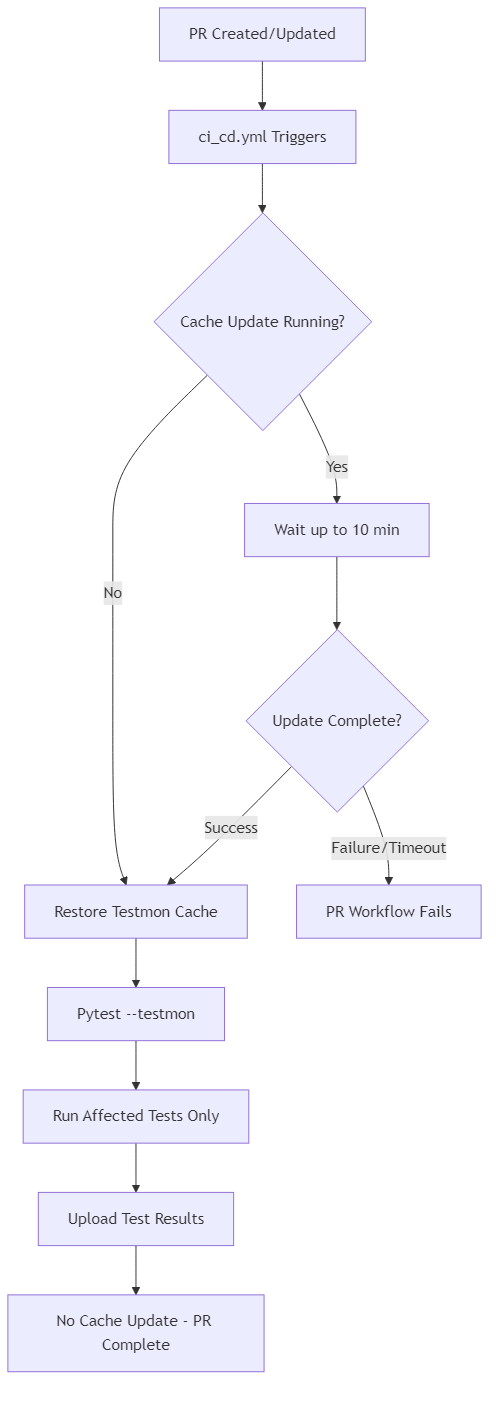

When a pull request is created or updated, the CI/CD pipeline executes the following workflow:

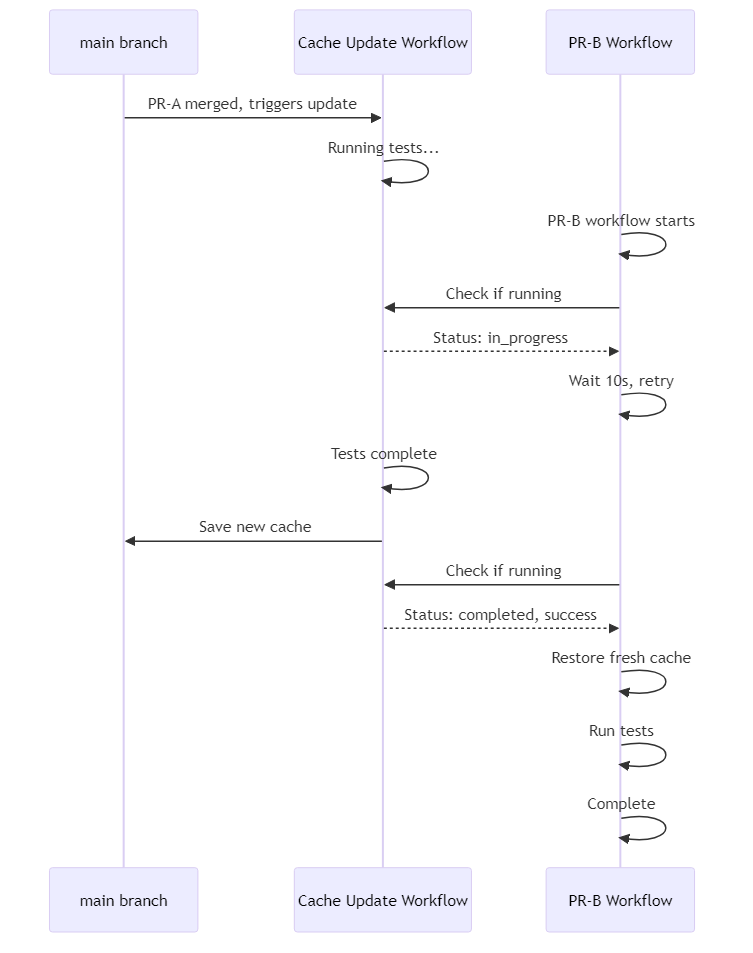

1. Wait for cache update (if needed): Before running tests, the workflow checks if the

update-testmondata-cache.yml workflow is running on the main branch for the pull request’s base commit. If so, the PR workflow waits for it to complete to ensure it uses the most up-to-date cache data.

2. Restore Testmon cache: Each job restores the .testmondata file from the GitHub Actions cache.

The cache key includes:

• The test suite identifier (for example, testmondata-unit-linux).

• The branch name (main).

• The latest successful commit SHA (unique identifier of a commit) on main.

3. Run selective tests: Pytest runs with the --testmon flag, which instructs Testmon to:

• Analyze which source files have changed compared to the cached state.

• Select only tests that depend on the changed files.

• Execute the selected tests.

4. Report results: Test results and coverage are uploaded as artifacts without modifying the cache

(only the main branch can update the shared cache).

Note

The PR workflow does not update the shared Testmon cache. This ensures that all PRs work from a consistent baseline derived from the main branch.

Testmon workflow during merge to main

When a pull request is merged to the main branch, the update-testmondata-cache.yml workflow triggers automatically:

1. Run all affected tests: The workflow runs tests with Testmon to update the dependency data based on the newly merged code.

2. Delete old cache entries: Before saving, old cache entries for the same test suite are deleted to prevent cache accumulation.

3. Save updated cache: The updated .testmondata file is saved to GitHub Actions cache with a key that includes:

• The test suite identifier (for example, testmondata-unit-linux).

• The branch name (main).

• The commit SHA.

4. Cache available for PRs: The new cache becomes the baseline for all subsequent pull requests.

Each test suite maintains its own separate cache:

• testmondata-unit-linux: Unit tests on Linux.

• testmondata-integration-linux: Integration tests on Linux.

• testmondata-solvers-win: Solver tests on Windows.

• testmondata-solvers-linux: Solver tests on Linux.

• And other test suites (general, visualization, icepak, layout, extensions, filter, emit).

Note

For detailed information about edge cases, keeping PRs updated, and tracking coverage locally, see Developer notes.

Workflow diagrams

The following diagrams illustrate the Testmon workflow in the CI/CD pipeline.

Diagram 1: PR workflow with Testmon

This diagram shows how the CI/CD pipeline handles a pull request with Testmon integration, including the cache waiting mechanism and selective test execution.

Diagram 2: Merge to main workflow

This diagram illustrates what happens when a PR is merged to the main branch and the cache update workflow is triggered.

Diagram 3: Multiple concurrent PRs

This diagram shows how multiple PRs can run concurrently, each restoring from the same baseline cache without interfering with each other.

Diagram 4: Cache update blocking scenario

This sequence diagram shows the timeline when a PR workflow starts while the cache update workflow is running, demonstrating the waiting and retry mechanism.
