Via design

Introduction

This extension generates a parameterized PCB or package via design based on a configuration file. The configuration file can be customized to define the stackup, pitch size, and other parameters.

How to use

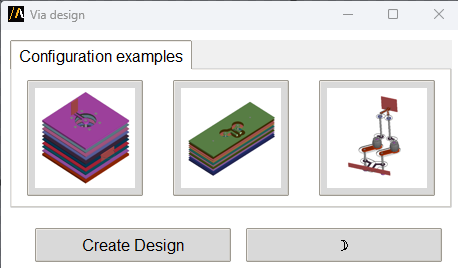

1. Click any of the via design icon, and save the example configuration file to your local drive.

2. Open the configuration file in a text editor and modify it according to your design requirements.

3. Click Create Design and browse to the updated configuration file to generate the via design.
